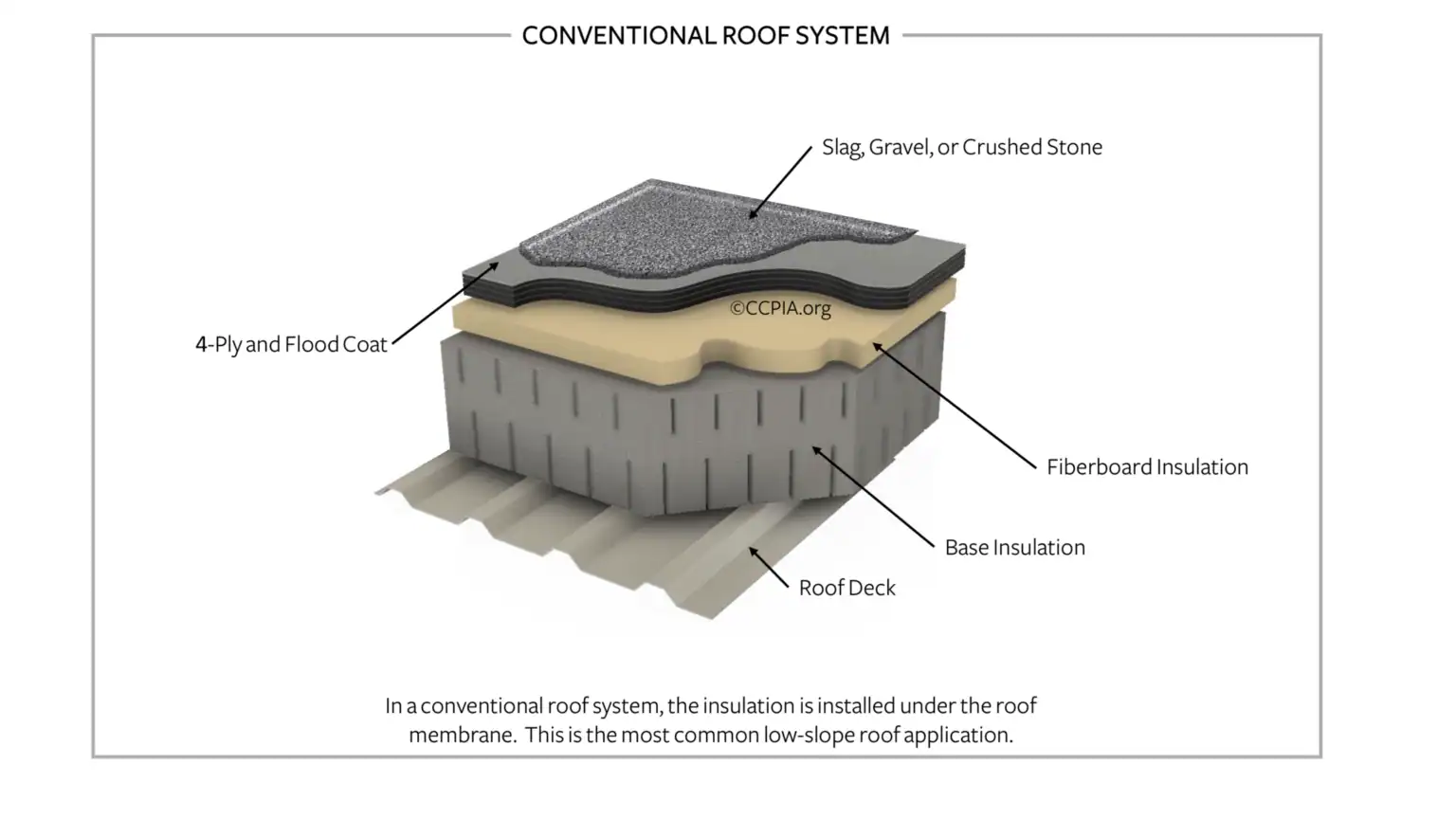

Conventional Roof System
What is a Conventional Roof System?
In a conventional roof system, the insulation is installed below the roof membrane. This configuration is common for low-slope roofs but comes with inherent challenges that affect the roof’s performance and longevity.
Key Features and Challenges:
Membrane Aging:
- Solar heat increases the roof membrane’s surface temperature, accelerating oxidation and evaporation of volatile oils in bitumen-based membranes.
- Results in brittleness, cracking, or “alligatoring” of the membrane surface, often exacerbated by UV exposure.
Thermally-Induced Expansion and Contraction:
- The lack of heat transfer through the roof assembly causes the membrane to heat up excessively during the day and cool rapidly at night.
- These temperature swings lead to expansion, contraction, and stress on the membrane, causing issues like ridging, splitting, and lap-shear stress.
Moisture Issues:
- Temperature differences between the membrane and interior can result in water vapor condensation within the roofing system, leading to:
- Deterioration of insulation.
- Roof leaks and ceiling damage.
- Freezing/thawing cycles that weaken the membrane.
Durability:
- Mechanical fasteners may become exposed as the membrane shrinks.
- Ponding water may occur due to collapsed insulation.

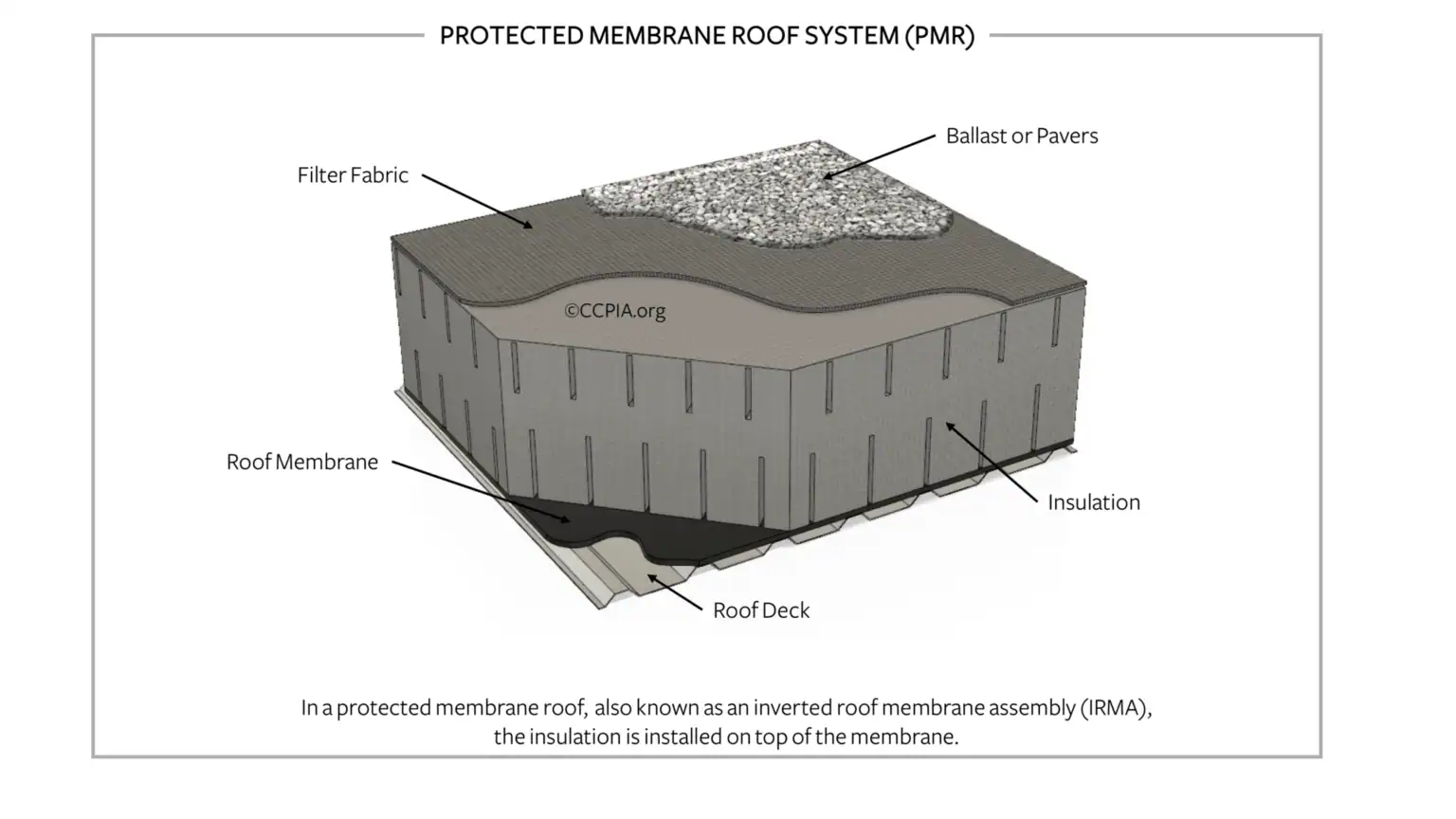

Protected Membrane Roof (Inverted Roof System)
What is an Inverted Roof System?
In an inverted roof system, the insulation is installed above the roof membrane. This innovative design protects the membrane from temperature extremes, mechanical damage, and UV exposure, improving longevity and performance.
Key Features and Benefits:
Improved Membrane Protection:
- Insulation shields the roof membrane from UV radiation, mechanical damage, and extreme temperatures, significantly reducing wear and tear.
Moisture-Resistant Insulation:
- Extruded Polystyrene (XPS) is commonly used as it resists water absorption and freeze/thaw cycles.
- Insulation is held in place with ballast (gravel, pavers) or soil (in green roofs), preventing movement.
Energy Efficiency:
- By maintaining a stable temperature across the roof, inverted systems reduce thermal bridging and energy loss.
Enhanced Design Flexibility:
- Supports additional features such as green roofs, terraces, and blue roofs for stormwater management.
5 Reasons to Choose an Inverted Roof
1. Lower Total Roof-Life Costs:
- Extended durability and reduced maintenance costs can lower total roof-life expenses by up to 22%.
- Protecting the membrane during and after construction minimizes damage and prolongs its lifespan.
Environmental Benefits:
- Loose-laid insulation and ballast are reusable, reducing construction waste.
- Green roofs mitigate the urban heat island effect and reduce carbon emissions by enhancing energy efficiency.
Stormwater Management:
- Green roofs absorb and retain 40–90% of stormwater runoff, alleviating stress on urban sewer systems and reducing flood risks.
Improved Occupant Satisfaction:
- Walkable roof spaces with green or recreational areas enhance occupant well-being and productivity.
- Adds aesthetic and functional value to buildings.
Habitat Preservation:
- Green roofs provide habitats for birds, insects, and other wildlife, supporting urban biodiversity and contributing to ecological balance.
Inverted roofs are gaining popularity due to their durability, cost efficiency, and environmental benefits. By protecting the roof membrane with insulation placed on top, inverted systems outperform conventional roofs in both longevity and functionality. Whether for commercial or residential projects, they offer a versatile solution that aligns with modern sustainability and performance goals.
